SCEC Road Construction Machines Asphalt/Bitumen synchronous chip sealer truck, Asphalt tank volume 8m3,
Stone tank 12m3, Spreading width 4m
1. Specification:
| Truck chassis specification | Truck model | SCEC5310TFC |
| Chassis number | DFH1310A1 | Truck type | Special purpose truck |
| Overall dimension | 12500x2500x3800mm |
| GVW | 31000kgs | Tare weight | 20590kgs |
| Rated loading | 10215kgs | wheelbase | 1850+4600+1350mm |
| Tyre | 11.00R20 | Tyre number | 12+1pcs |
| Engine Specification | Engine model | Cummins ISL9.5-315E51A |
| Rated power | 232kw | Horse power | 315hp |
| Special purpose part specification | Hydraulic part brand | Faisto, Italy | PTO model | SDQ12/68 PQ1 |
| Asphalt pump model | YC500 | Asphalt pump displacement | 500L/min |
| Heat conducting oil pump | RY32-32-160 | Heat conducting oil pump displacement | 108L/min |
| Asphalt tank volume | 8m3 | Sprinkler nozzle quantity | 28 |
| Stone tank volume | 12m3 | Material door quantity | 16 |
| Spreading width | 4m | Nozzle type | Cylinder nozzle assembly |
| Asphalt spread quantity | 0.3-3L/m2 | Stone diameter | 5-20mm |
| Control system | Automatic smart | Generator power | 5kw, three group |
| Burner(Cal) | 200 thousand | | |
2. Application:
1. It can be widely used in the construction process of ordinary slurry seal, modified slurry seal and micro surface.
Synchronous gravel seal car is mainly used to deal with road surface friction reduction, cracks, rutting and other diseases.
In order to improve the slip resistance and water resistance of the road, improve the smoothness of the road and the
driving comfort so as to achieve the "return to old and new" effect.
2. The chassis is designed with high strength, not only low-end to meet the construction requirements, but also to
maintain the running speed; the high-pressure cleaning device in the feeding system, two sets of paving water supplement
devices are perfect, the emulsion pump flow is stable, and high-quality power drive components Accurate control of the
amount of material conveyed.
3. The synchronous crushing stone sealing truck has an advanced mixing system and a high level of intelligence. In order
to meet more operational requirements, its mixing device should be appropriately adjusted and controlled according to
different road inclination angles.
3. Advantages:
1. Adopt Dongfeng Tianlong chassis, 315 horsepower Cummins engine, strong power and comfortable driving
2. The asphalt tank is equipped with a full-automatic burner. The melting furnace heating technology is used in the tank. The heating speed is fast. At the same time, the oil is used for heat insulation. The asphalt pump and the external pipeline are insulated.
3. With mixing system, also suitable for spraying rubber asphalt
4. Fully-automatic intelligent control system, German Siemens control element, can achieve dual precise distribution of aggregate and asphalt
5. Full touch screen display, synchronous display of technical parameters
6. Automatic and manual one-button switch, suitable for different operation requirements
7. Fully imported hydraulic system, safe, reliable and noiseless.

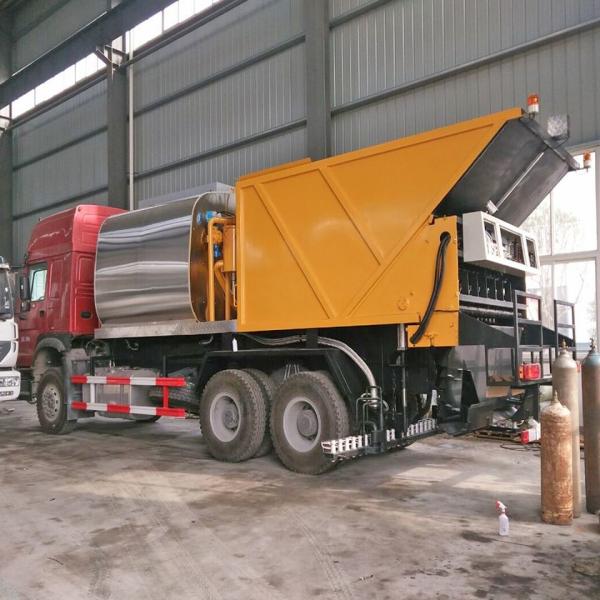

4. More photos for your reference:
